Brand:
GESTERItem NO.:
GT-C90-2Order(MOQ):
1Lead Time:
15-30 daysProduct Detail

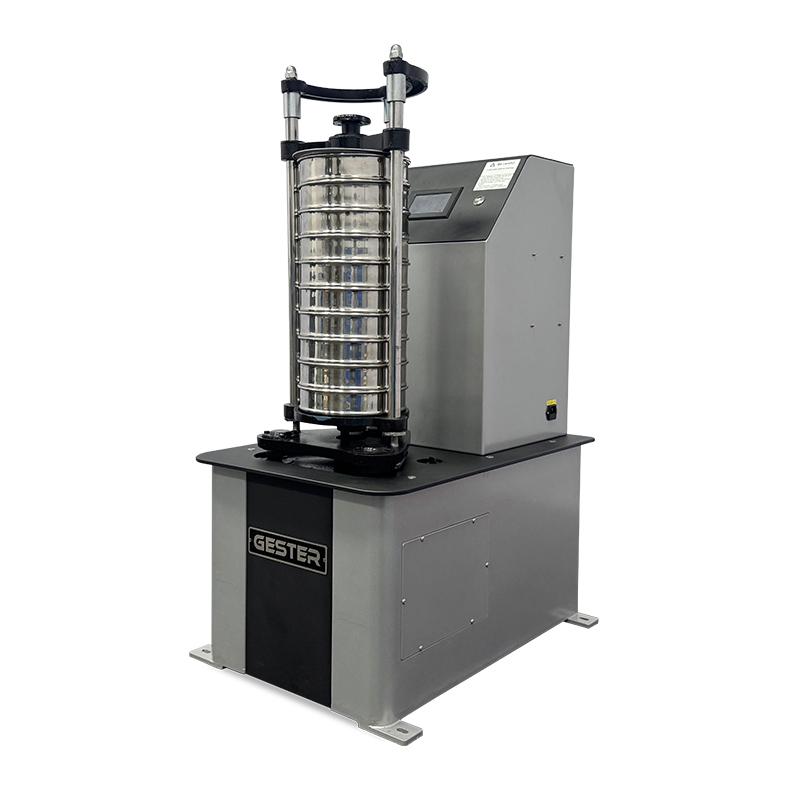

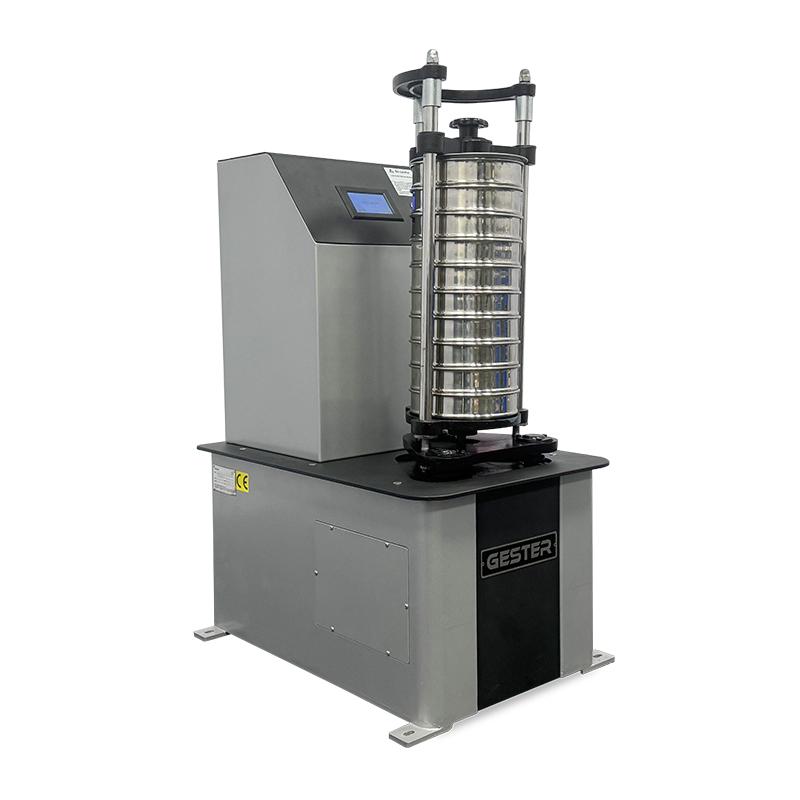

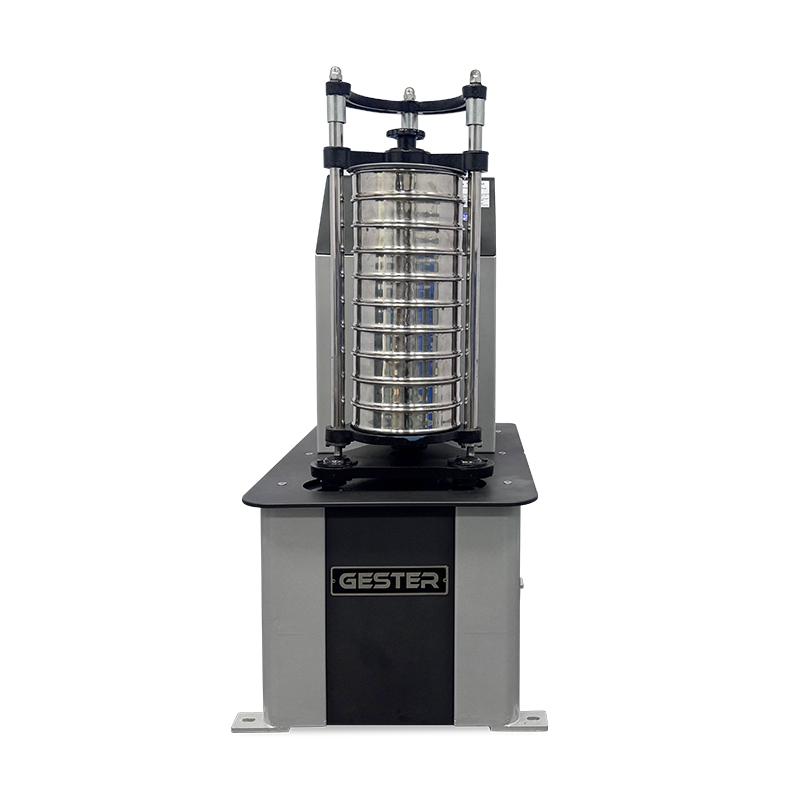

Geotextile Effective Opening Size Tester-Dry Sieving Method GT-C90-2
Application:
This equipment is used to determine the apparent opening size of a single layer geotextile or geotextile related products, using the dry sieving principle.
It applicable to geological, metallurgical, chemical, coal, defense, scientific research, grinding wheel, cement, construction and other sector’s test and laboratory’s materials analysis.
Model |
GT-C90-2 |
Max Diameter of Sifters |
200mm |
Screen Layer Stackle |
400mm |
Rotation Radius |
12±1mm |
Horizontal Shake Frequency |
220±10 RPM |
Vertical Vibration Frequency |
150±10 RPM |
Amplitude |
10±2mm |
Power Supply |
1∮ AC 220V 50/60Hz |
Dimensions |
680×450×750mm |
Weight |
100kg |
Standards |
JTG E50, GB/T 14799, ASTM D4751
|
Accessories
Standards accessories
1pc
Sifter
1pc
Power Line
1pc
Balance 300g, Precision 0.01g
1pc
Standard Grain
