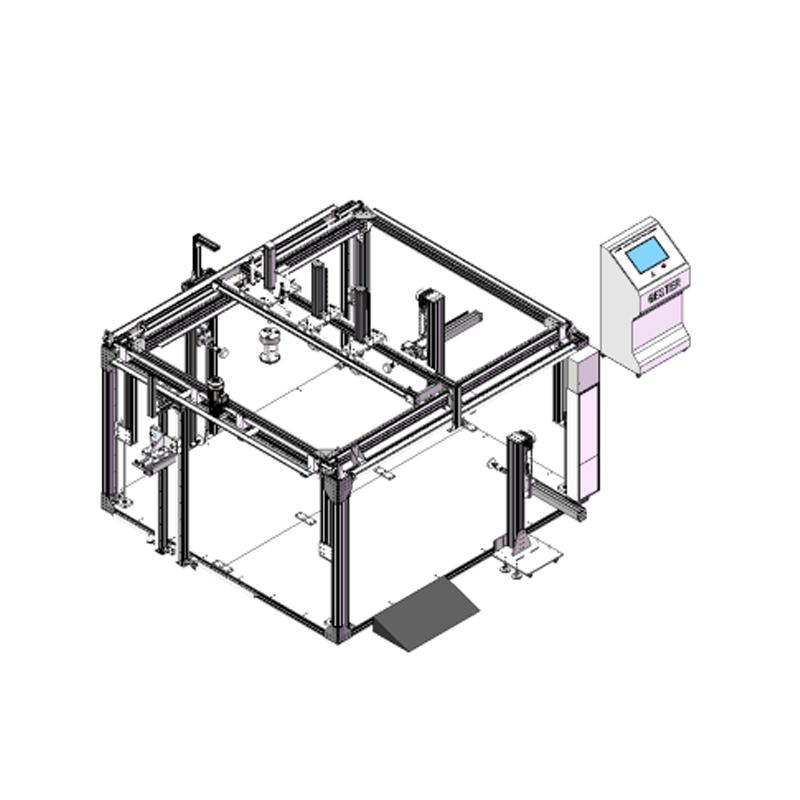

Máquina de teste universal para móveis de mesa GT-LD09

Model

GT-LD09

Control mode

PLC control

The Max. length of specimen

3m

Force sensor

2.5 KN

D rive mode

S ervo motor +C ylinder

Machine Dimensions

320cm × 25 0cm × 20 0cm (L × W × H)

Test Standards

Desk:

EN 1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 6.7,6.9 , 7.2, 7.3,

BS EN 15372-2016 Test1, Test2, Test3, Test5, Test6, Test8, Test10,

AS NZS 4610.3-1999 Annex B, D, E, G, N, P, R

AS NZS 4442-1997 Annex A, B, H, J

Testing Methods --- Desk

Standard EN 17 30

6.2 Horizontal static load test

6.3 Vertical static load tests

6.4 Horizontal durability and stiffness test

6.5 Vertical durability test

6.6 Vertical impact test

7.2 Stability under vertical load

7.3 Stability for tables with extension elements

Standard Accessories

- Horizontal loading device 4 sets

- Vertical loading device 2 set s

- Impact device 1 set

- Local loading pad 6 pcs

- GT-LB01-6 Seat i mpactor d evi ce 1Set

- Force sensor 6 pcs

- Stoppers 4 pcs
